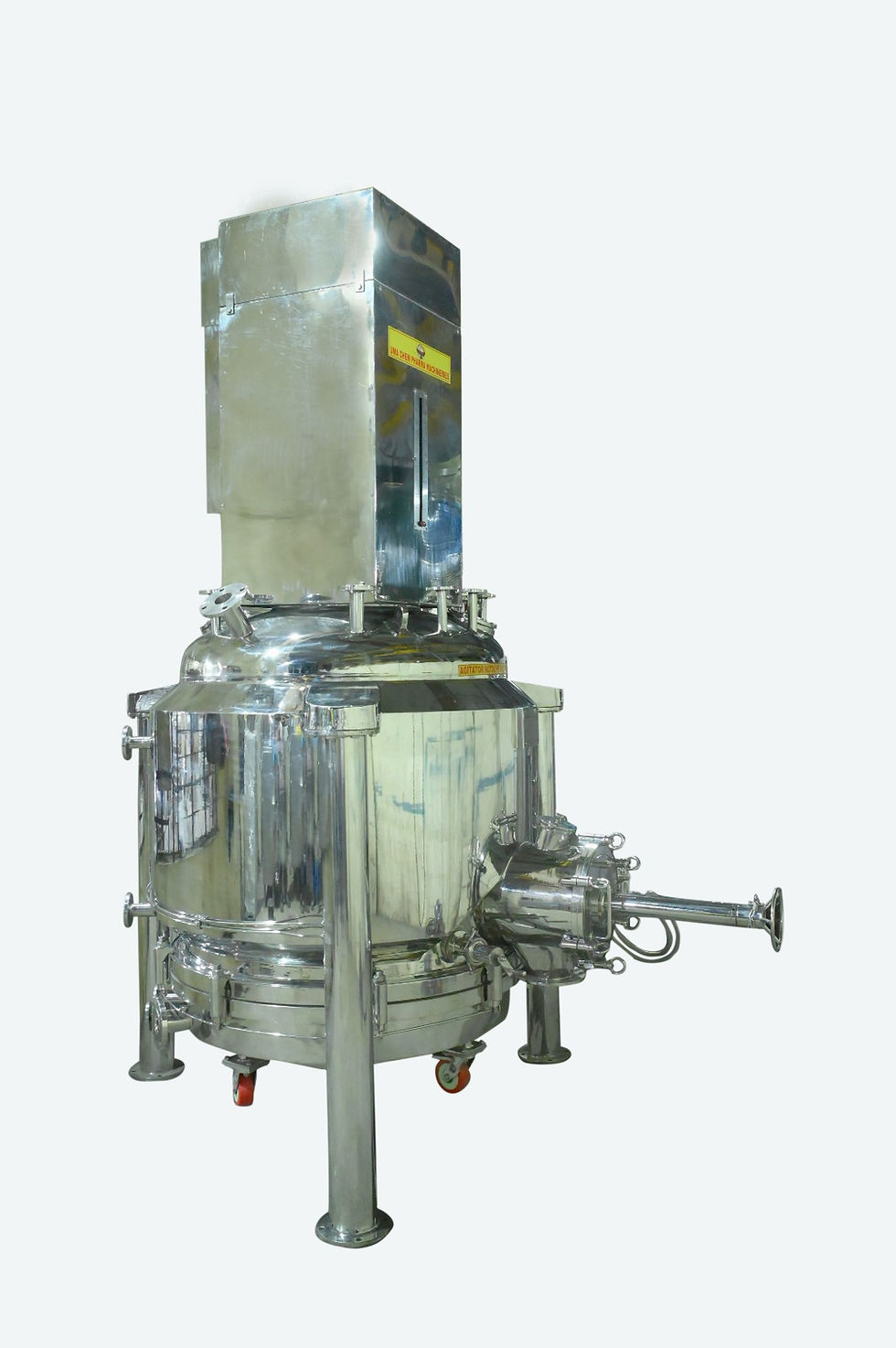

Agitated Nutsche Filter/Dryer
Agitated Nutsche Filter is high-quality equipment designed for solid-liquid separation processes, by filtration under pressure, for the pharmaceutical, chemical, fine chemical and food industries. This is a combination of Filter and Dryer unit in single equipment to achieve economy in process and energy thereby improving profitability.
| Model | Working Volume (Ltrs.) | Max. Cake Volume | Filtration Surface Sq. m | Motor H.P - Filter | Motor H.P - Dryer | Discharge Clearance H2 | Vessel Size - Diameter D (mm) | Vessel Size - Height H1 (mm) | Overall Height H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ANFD-0.10 KL | 100 | 40 | 0.19 | 1 | 1.5 | 620 | 530 | 500 | 2400 |
| ANFD-0.20 KL | 200 | 80 | 0.97 | 1.5 | 2 | 620 | 620 | 770 | 2600 |
| ANFD-0.30 KL | 300 | 125 | 0.47 | 2 | 3 | 620 | 780 | 730 | 3200 |
| ANFD-0.50 KL | 500 | 240 | 0.81 | 3 | 5 | 620 | 1030 | 730 | 3500 |
| ANFD-1.00 KL | 1000 | 400 | 1.31 | 5 | 5 | 620 | 1300 | 850 | 3900 |
| ANFD-1.50 KL | 1500 | 600 | 1.53 | 5 | 7.5 | 700 | 1400 | 1000 | 4300 |
| ANFD-2.00 KL | 2000 | 800 | 2.01 | 7.5 | 10 | 700 | 1600 | 1000 | 4300 |
| ANFD-3.00 KL | 3000 | 1200 | 3.14 | 10 | 10 | 700 | 2000 | 1000 | 4500 |
| ANFD-4.00 KL | 4000 | 1660 | 4.14 | 10 | 12.5 | 800 | 2300 | 1000 | 4700 |
| ANFD-5.00 KL | 5000 | 2260 | 5.02 | 15 | 15 | 800 | 2530 | 1000 | 4800 |
| ANFD-6.00 KL | 6000 | 2675 | 5.93 | 15 | 20 | 800 | 2750 | 1000 | 4900 |
| ANFD-8.00 KL | 8000 | 3750 | 8.32 | 20 | 25 | 800 | 3260 | 1000 | 5000 |
| ANFD-10.00 KL | 10000 | 4500 | 10.21 | 25 | 30 | 800 | 3610 | 1000 | 5200 |
| ANFD-15.00 KL | 15000 | 6500 | 13.63 | 30 | 40 | 800 | 4170 | 1100 | 6000 |
Advantages
- Filtration
- Drying
- Washing of Filter Cake
- Toxic and hazardous materials can be processed
- Reduced manpower & no manual handling of product
- Minimum hold up of filtrate in the equipment
- Repeat mix or washing of the Cake
- Smoothing with compression of the Cake
- Fully Automatic discharge of the wet or dried Cake.
- The equipment is functionally safe and easy to operate
- Agitator moves clockwise, anticlockwise, up & down, this ensure through washing & re-slurring the cake.
Agitated Nutsche Filter / Dryer
SHAFT SEAL:
- Wet & Dry Mechanical Seals with metallic bellow.
- Jacketed stuffing box with gland packing.
ANFD APPLICATION:
- Precise temperature control
- Risk of environmental hazard from toxic or flammable products
- Reslurry washing
- Absolute separation between the mother liquor and wash solutions
- Delicate cakes (i.e. tend to crack easily)
Filter Media
- Multilayered Sintered wire mesh.
- Filter cloth Natural or fiber
- Metallic Screens.
Controls & Safety
A trouble free and easy maintenance of Hydraulic system.
- Discharge valve operation for labour-free cake removal
- Lowering and Lifting the agitator
- Lowering the detachable bottom when provided
- Driving the agitator, when hydraulic motor is used.
Limit Switches - To limit up and down movement of shaft, bottom bed and open/close of discharge valve.
The discharge valve is specially designed for leak proof operation and the automatic cake discharge.
Non-bolted quick detachable bottom designs facilitate easy cleaning, quick changing of filter media, recommended for various products processing. The bottom bed is trolley mounted for easy movement.

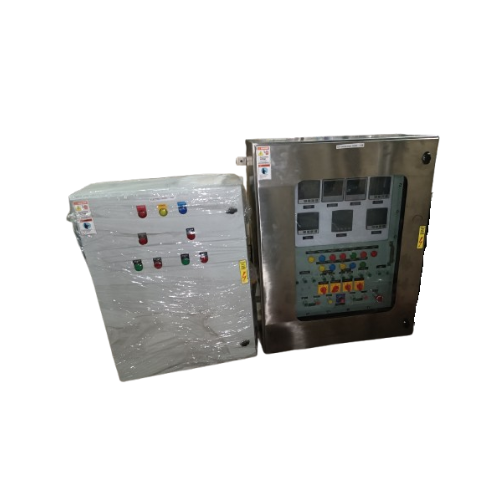

Control Panel - We provide Flame proof Control panel or as required. Complete PLC-HMI/SCADA based control panel can also be provided.
M. O. C.
- Stainless steel
- Hastelloy C-276
- Hastelloy C-22
- Tefzel Coating
- PFA Coating
- Halar Coating
- Monel
OPTIONS:
- Bottom detachable Arrangement type is for easy cleaning/cloth fixing
- Agitator inside Heating System
- Different Type Stirrer design based on physical characteristic of material.
- Complete Automation is with PLC
